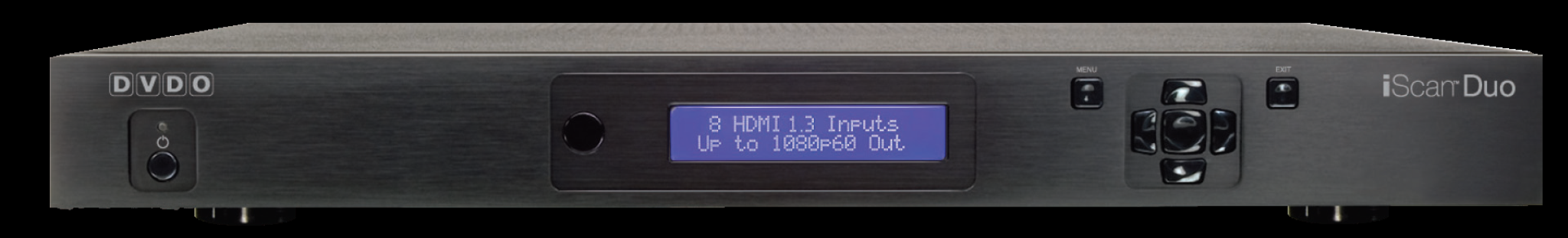

Skaler/procesor wideo HighEnd 8 wejść HDMI, 7 wejść analogowych, wyjścia 2 HDMI

15 Video Inputs Available
• 8 HDMI 1.3 (RGB or YCbCr) processes 480i/p-60, 576i/p-50, 720p-
50/60, 1080i-50/60, 1080p-24/25/50/60, VGA-SXGA @ 60Hz
• 2 Component (YPbPr or RGB/S) processes 480i/p-60, 576i/p-50,
720p-50/60, 1080i-50/60, 1080p-50/60
• 1 HD15 (VGA, SVGA, XGA, SXGA @ 60Hz)
• 1 S-Video (NTSC/PAL/SECAM)
• 3 Composite (NTSC/PAL/SECAM)
14 Audio Inputs
• 8 HDMI 1.3 (Compatible with Multi-channel PCM, DSD, Dolby TrueHD,
Dolby Digital Plus, DTS-HD, and DTS-HD Master audio formats)
• 3 Assignable Optical Digital
• 1 Assignable Coaxial Digital
• 2 Assignable Analog Pairs (L/R)
Outputs
• 2 HDMI 1.3 Audio/Video Outputs (for Connection to 2 Displays) —
Configurable for RGB or YCbCr
— Also carries digital audio (Compatible with Multi-channel PCM, DSD,
Dolby TrueHD, Dolby Digital Plus, DTS-HD, and DTS-HD Master
audio formats)
• 3 Digital Audio Outputs
— 1 HDMI 1.3 ‘Audio Only’ output for receivers with HDMI (Compatible
with Multi-channel PCM, DSD, Dolby TrueHD, Dolby Digital Plus,
DTS-HD, and DTS-HD Master audio formats)
— 1 Coaxial Digital
— 1 Optical Digital
Video Output Resolution
• Auto format detection to output native resolution of displays up to
1920x1200 (WUXGA) resolutions
• Manual output resolution supporting video standards including
1080p60, 1080p50, 1080p54, 1080p24
37 Built-In Test Patterns include two ISF White and Black Pluge Test
Patterns for Display Setup and Calibration
Software Upgradeable via Mini USB Port
Operation
• Intuitive On Screen Display and easy to read 2 line, 20 character Front
Panel Display
• Front Panel Controls, included IR Remote Control (discrete codes
available),2 rear panel IR connectors (IN & OUT) & RS232 port
Power
• Universal AC mains input: 100 –240 VAC @ 50 –60 Hz using an
external 12V power adapter
• Consumption < 60W
• Sleep Mode – automatic 30 second timeout indicated by power indicator
color change
Physical Dimensions
• 10.4” x 17” x 2.2” (26.3cm x 43.4cm x 5.5cm) with feet
• 10.4” x 17” x 1.8” (26.3cm x 43.4cm x 4.6cm) without feet
• Standard 19” 1U 1.75” Rackmount included
Weight
• Shipping – 12.2 lb
• Unit without Power Supply – 6.6 lb (3.0 kg)
Part number
• MM701
Rear Panel of the DVDO iScan Duo
